Effective placement of riprap rock is essential for controlling erosion and protecting your property. Here are some key ideas and techniques to consider when planning your project:

1. Protecting Stream Banks:

• Placement: Lay the riprap along the banks of streams or ditches to prevent erosion caused by flowing water.
• Layering: Start with a stable base layer, then place larger rocks at the bottom and smaller rocks on top.
• Slope: Maintain a gentle slope to direct water flow and prevent rock displacement.

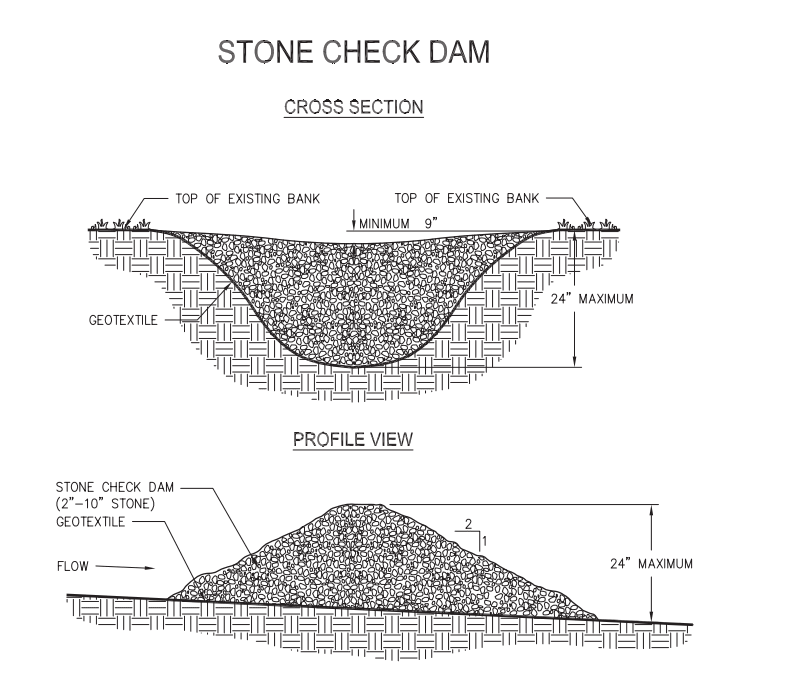

2. Creating Check Dams:

• Purpose: Check dams are structures built across swales or ditches to slow water flow and reduce erosion. Check dams are normally temporary, but they can be used as a long-term practice.
• Design: Construct the dam with riprap, ensuring the center is lower than the edges to allow controlled water flow.
• Spacing: Place multiple check dams in series, with the toe of the upstream dam at the same elevation as the top of the downstream dam.

3. Stabilizing Channels:

• Channel Lining: Use riprap to line channels where water flow velocities are high to prevent erosion, especially at the outside of bends.
• Gradient Control: Place riprap to stabilize the channel gradient and prevent excessive erosion or sediment buildup.
• Outlet Protection: Ensure proper outlet protection to reduce erosion at the discharge point of pipes.

4. Erosion Control on Slopes:

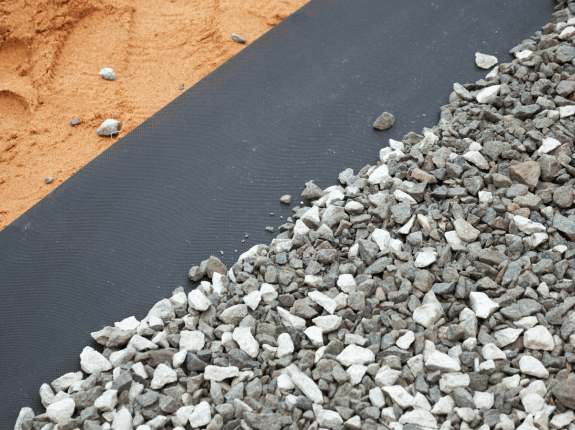

• Base Layer: Use geotextile fabric as a base layer to prevent soil erosion underneath the riprap.
• Rock Placement: Arrange the rocks tightly and securely, with larger rocks at the bottom to anchor the structure.
• Slope Maintenance: Avoid steep slopes to prevent rock displacement and maintain stability.

5. Using Gabion Baskets:

• Structure: Gabion baskets are wire containers filled with riprap that provide strong and flexible erosion control.
• Placement: Install gabion baskets along slopes, stream banks, or other areas where strong erosion control is needed.
• Benefits: They are durable, permeable, and can be integrated with vegetation for additional stabilization.

6. Vegetative Solutions:

• In almost all cases of erosion, vegetation can and should be part of the answer. See the Vegetative Solutions page for more information.

By following these placement ideas and techniques, you can effectively use riprap rock to control erosion and protect your property. For more detailed guidelines, please refer to the excerpts from Manual for Erosion and Sediment Control in Georgia, linked below.
